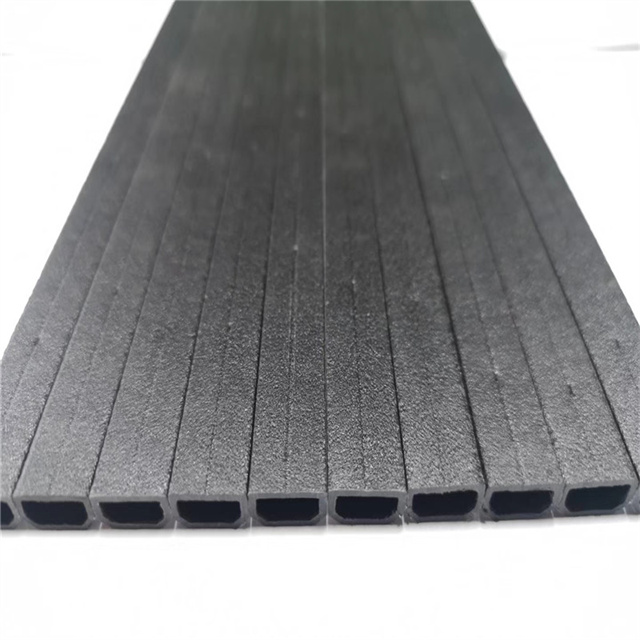

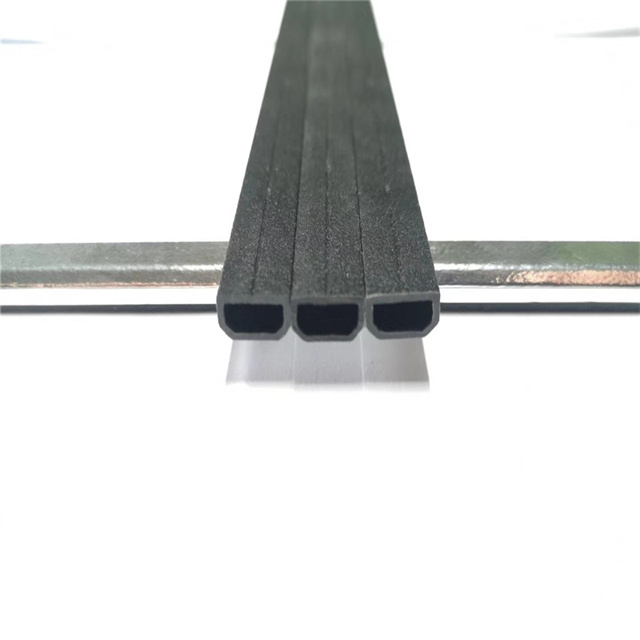

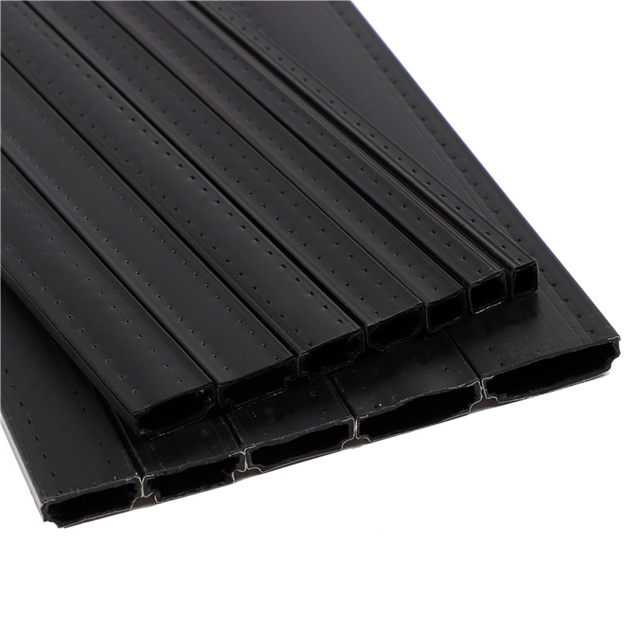

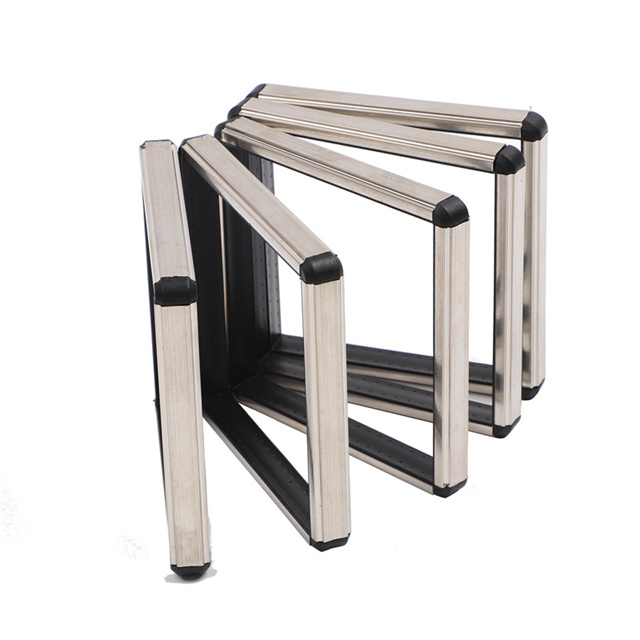

Unbendable Warm Edge Spacer

loading

Share to:
1. Warm edge technology can reduce normal, heat transfer coefficient, is an effective way to improve the thermal performance of the whole window.
2. Warm edge technique greatly increases the temperature of the edge of the hollow glass, and improve the anti-galate properties of glass hollow glass.
3. Warm edge technology, effectively reduces the possibility of glass self-explosion and thermal stress fracture caused by temperature difference during use.
4. The warm side spacing of the double sealing structure can be applied to residential building doors and windows and in the construction of the glass curtain wall.
5. The most commonly concise way is that the warm side strip has formed a broken bridge in the hollow glass.
Availability:
Quantity:
Features:

Warm Edge spacer is developed as the solution to heat-loss through the insulating glass edges. And now it is widely used in developed countries. More attention is paid all over the world


Technical Data:

Stainless Steel and Plastics have been used as component materials to low down the energy-losing.
Maximum decrease the condensation on the window glass;
Avoid the corrosion of the spacer frame;
Optimize the heat and energy insulation.


Packing:
Cartons or iron rack in 5m or 6m


Transportation:
Suitable for shipment by sea, land and air.


Specification sheet:(Customized Size could be offered)


 Item Size Width Height Wall Thickness Qty/Carton
(Unbendable)6A5.5mm6.5mm0.25mm3000
7A6.5mm6.5mm0.25mm2700
8A7.5mm6.5mm0.25mm2700
9A8.5mm6.5mm0.25mm2700
10A9.5mm6.5mm0.25mm2400
11A10.5mm6.5mm0.25mm2100
12A11.5mm6.5mm0.25mm2100
14A13.5mm6.5mm0.25mm1800
15A14.5mm6.5mm0.25mm1650
16A15.5mm6.5mm0.25mm1500
17A16.5mm6.5mm0.25mm1500
(Bendable)6A5.5mm6.5mm0.33mm3000
7A6.5mm6.5mm0.33mm2700
8A7.5mm6.5mm0.33mm2700
9A8.5mm6.5mm0.33mm2700
10A9.5mm6.5mm0.33mm2400
11A10.5mm6.5mm0.33mm2100
12A11.5mm6.5mm0.33mm2100
14A13.5mm6.5mm0.33mm1800
15A14.5mm6.5mm0.33mm1650
16A15.5mm6.5mm0.33mm1500
17A16.5mm6.5mm0.33mm1500
