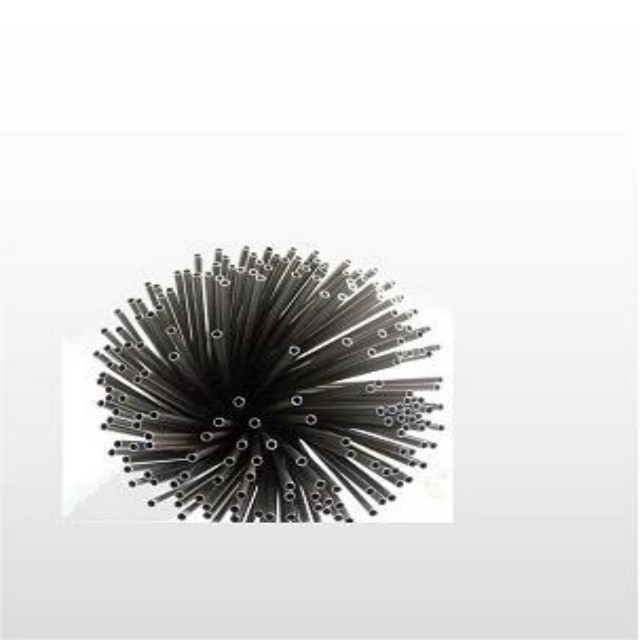

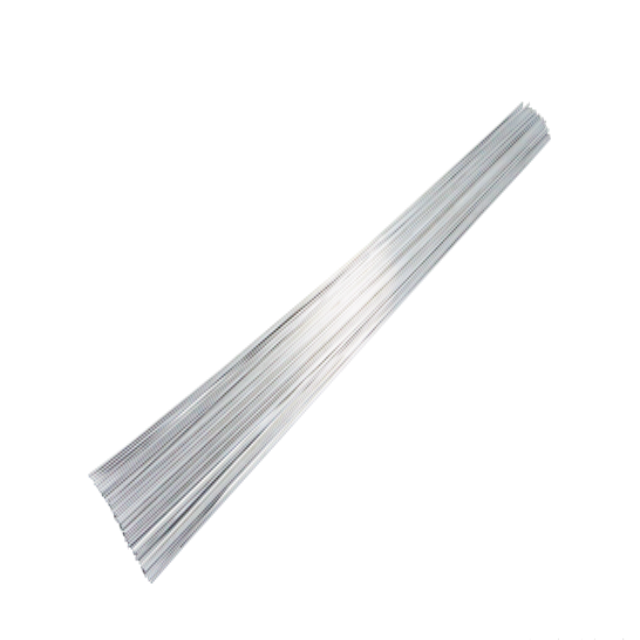

Capillary for IG units

loading

Share to:
With the height change, adjust the pressure between the air of the insulating glass and the external atmosphere, pressure balance.
Availability:
Quantity:

Product description

fB-uQyzcR-qYkYyqC2tkPg

With the height change, adjust the pressure between the air of the insulating glass and the external atmosphere,pressure balance.

Use method:

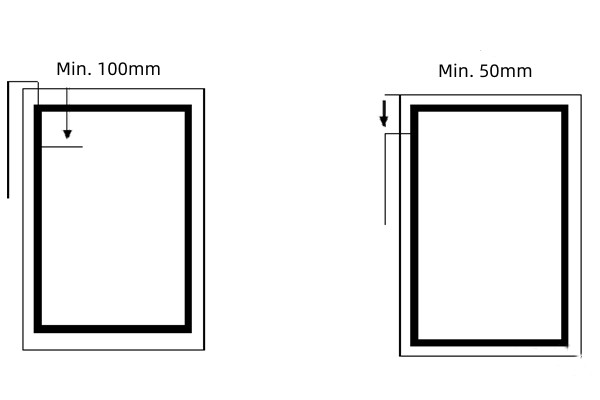

Figure 1: capillary/breathing tube inserted at least 100mm deep into aluminum tube from corner.

Figure 2: the capillary/breathing tube is inserted at least 50mm from the side of the aluminum tube to the upper glass edge.

Final installation: the external end of the capillary must be putted downside. The end of the breathing tube must be compressed. And insert in the middle of structure, then use the structure glue sealed.


Specification:


  • Material: stainless steel

    Specification model (mm) : 0.8*0.1*330

    Note:special specifications can be customized
